Radial shaft seal ring Radial shaft seal ring The CK series screw pump is only available with a radial shaft seal ring. The CL series screw pump can be equipped with different shaft sealing options thanks to the longer screw set. External bearings are also possible. This pump line is used as a horizontal or vertical foot-mounted or flange-mounted pump as well as in in-tank vertical arrangements.

Longer screw set Longer screw set Thanks to the longer spindle an external ball bearing is optionally offered.

Seal housing Seal housing Depending on the operational requirements various shaft seal options are possible for the CL series. The CL series screw pump is the cartridge (insert) pump of the CG series. The various housing options allow enormous flexibility in terms of the liquid connections. An external overflow valve can optionally be attached to the CG series screw pumps.

Flexible connections Flexible connections If the outer casing is made from fabricated steel, then almost any positioning, direction, size, type and rating of flange can be achieved. It can be ideally suited to match the installation situation.

External overflow valve External overflow valve The overflow valve ensures that the liquid is rerouted should excess pressurization occur.

Housing variants Housing variants Depending on the operational requirements cast iron or steel housings are offered for the CG series.

KRAL C Series Screw Pumps.

For pressures of up to 100 bar.

Efficient, self-priming high-pressure pump up to 100 bar.
Pump solution for high pressures at an excellent price-performance ratio. With KRAL screw pumps of the C series you buy high-pressure pumps with all the advantages of our KRAL pumps K and L: robust, low-wear, flexible, space-saving, durable and much more. Compared to other pump solutions, KRAL screw pumps convince with highest reliability, even under different operating conditions the screw pumps are highly efficient.

Due to the wide range of possible applications, we offer the KRAL C series as standard in the CK, CL and CG series. The main components of these pumps are all the same, the differences lie in the individual details, matched to the requirements in different applications (see detailed description below).

Application examples: Injection pumps, feed pumps, burner pumps, jacking pumps, transformer oil cleaning pumps, hydraulic pumps and generally all applications in which efficient, reliable high-pressure pumps for lubricating media are required.

DOWNLOADS

C Series Screw Pumps US Version Overview Screw Pumps Apercu Pompes a vis Przeglad Pompy srubowe Vista general Bombas de husillo roscado Visao geral Bombas parafuso Обзор Винтовые насосы

Operation, materials, components.

Delivery rate CK: 1,750 l/min.
Delivery rate CL: 1,750 l/min.
Delivery rate CG: 3,550 l/min.
Temperature range: -20 °C to 180 °C, magnetic coupling to 300 °C.

Pressure range: 70 bar; 100 bar.
Housing: Nodular cast iron, steel and aluminium.
Spindles: Steel, nitrided.
Certifications: ABS, BV, CCS, DNV, GL, LRS, MRS, NK, RINA, KR.

ATEX: II 2 GD b/c group II, category 2.
Heating: Electrical, fluid media and steam.
Manufactured to conform with API.

Find out more

KRAL CK series.

High-pressure pump for various media, easy to install.

The KRAL screw pump of the CK series is an extremely compact and cost-effective solution for high-pressure applications. It is also the best-selling screw pump line of the KRAL C series. Standardized pump / motor brackets made of aluminum are used for the CK pump - which is reflected in the favorable price and easy installation.

The screw pump of the CK series with its short shaft, radial shaft seal and internal bearings is a preferred solution in many applications.

Your advantages.

Flow rates up to 880 l/min.
Viscosity of 10,000 mm²/s.
Pressure maximum up to 100 bar.
Easy installation.
Inexpensive product for various pumped media.

KRAL CL series.

Reliable pump at high pressure.

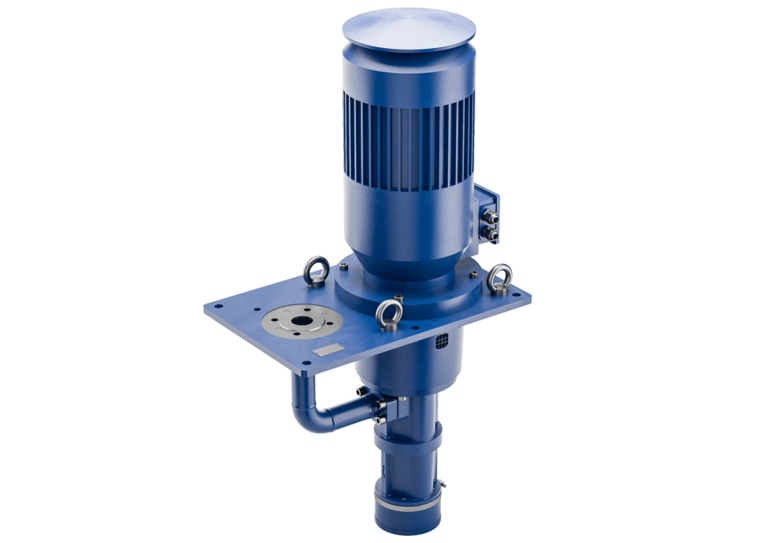

The KRAL screw pump of the CL series is a high-pressure pump with a longer main spindle than the CK screw pump has. It can also be equipped with various shaft seals and external bearings. The KRAL CL series is often used as a horizontal or vertical foot pump or flange mounted pump as well as in tank-vertical arrangements.

KRAL screw pumps of the CL series are also used as cartridge (insert) pump for KRAL screw pumps of the CG series (see below).

Your advantages.

Flow rates up to 880 l/min.
Viscosity of 10,000 mm²/s.
Pressure maximum up to 100 bar.
Simple installation.
Inexpensive screw pump.

KRAL CG series.

Extremely flexible high-pressure pump.

The KRAL screw pump of the CG series is used as a cartridge pump (insert pump) for the CL series and is available with various housings, relief valves and connections. The housing is available in cast iron or steel. We also manufacture the KRAL screw pumps of the CG series with heating jacket for high-viscosity media. The different housing options allow almost any location as well as many sizes and types of liquid connections.

The KRAL CG series - our flexible product for many different applications – as you can see in our product catalog or on our website pump overview.

Your advantages.

Flow rates up to 3,550 l/min.
Viscosity of 1,000,000 mm²/s.
Pressure maximum up to 100 bar.
A variety of housings, relief valves and connections.
Housing in cast iron or steel available.
Heating jacket for high-viscosity liquids.
For almost any location, size and type of liquid connection.
External overflow valve can be optionally attached.

Technical data.

CK series

CK series.

Technical data CK		5-10	15-26	32-42	55-85	105-118	160-210	235-275	370-450	550-880
Q_th (1.450 min-¹, 0 bar)	l/min	5-10	15-26	32-42	55-85	105-118	160-210	235-275	370-450	550-880


Max. discharge pressure	bar	100	70	70	70	70	70	70	70	40

Temperature	°C
with radial shaft seal NBR with radial shaft seal FKM		90 150	90 150	90 150	90 150	90 150	90 150	90 150	90 150	90 150

Viscosity	mm²/s
min.		1.1	1.1	1.1	1.1	1.1	1.1	1.4	1.4	1.4
max.		10,000	10,000	10,000	10,000	10,000	10,000	10,000	10,000	10,000

Max. pressure at suction flange	bar
with radial shaft seal		10	10	10	10	10	10	10	10	10

CL series

CL series.

Technical data CL		5-10	15-26	32-42	55-85	105-118	160-210	235-275	370-450	550-880

Q_th (1.450 min-¹, 0 bar)	l/min	5-10	15-26	32-42	55-85	105-118	160-210	235-275	370-450	550-880

Max. discharge pressure	bar	100	100	100	100	100	100	100	80	80

Temperature	°C
with stuffing box packing		80	80	80	80	80	80	80	80	80
with radial shaft seal		150	150	150	150	150	150	150	150	150
with mechanical seal - standard		150	150	150	150	150	150	150	150	150
with mechanical seal - hard material		180	180	180	180	180	180	180	180	180
with magnetic coupling		300	300	300	300	300	300	300	300	300

Viscosity	mm²/s
min.		1.1	1.1	1.1	1.1	1.1	1.1	1.4	1.4	1.4
max.		10,000	10,000	10,000	10,000	10,000	10,000	10,000	10,000	10,000

Max. pressure at suction flange	bar
with stuffing box packing		3	3	3	3	3	3	3	3	3
with radial shaft seal		10	10	10	10	10	10	10	10	10
with mechanical seal		30	30	30	30	30	30	30	30	30
with magnetic coupling		16	16	16	16	16	16	16	16	16

CG series

CG series.

Technical data CG		15-26	32-42	55-85	105-118	160-210	235-275
Q_th (1.450 min-¹, 0 bar)	l/min	15-26	32-42	55-85	105-118	160-210	235-275

Max. discharge pressure	bar	100	100	100	100	100	100

Temperature	°C
with stuffing box packing		80	80	80	80	80	80
with radial shaft seal		150	150	150	150	150	150
with mechanical seal - standard		150	150	150	150	150	150
with mechanical seal - hard material		180	180	180	180	180	180
with magnetic coupling		300	300	300	300	300	300

Viscosity	mm²/s
min.		1.1	1.1	1.1	1.1	1.1	1.1
max.		1,000,000	1,000,000	1,000,000	1,000,000	1,000,000	1,000,000

Max. pressure at suction flange	bar
with stuffing box packing		3	3	3	3	3	3
with radial shaft seal		10	10	10	10	10	10
with mechanical seal		30	30	30	30	30	30
with magnetic coupling		100	100	100	100	100	100

Technical data CG		370-450	550-880	851-951	1101-1301	1501-1701	2250-3550
Q_th (1.450 min-¹, 0 bar)	l/min	370-450	550-880	851-951	1101-1301	1501-1701	2250-3550

Max. discharge pressure	bar	100	100	100	100	100	100

Temperature	°C
with stuffing box packing		80	80	-	-	-	-
with radial shaft seal		150	150	150	150	150	150
with mechanical seal - standard		150	150	150	150	150	150
with mechanical seal - hard material		180	180	180	180	180	180
with magnetic coupling		300	300	300	300	300	300

Viscosity	mm²/s
min.		1.4	1.4	1.4	1.4	1.4	1.4
max.		1,000,000	1,000,000	1,000,000	1,000,000	1,000,000	1,000,000

Max. pressure at suction flange	bar
with stuffing box packing		3	3	-	-	-	-
with radial shaft seal		10	10	10	10	10	10
with mechanical seal		30	30	30	30	30	30
with magnetic coupling		100	100	100	100	100	100

Operation, materials, components.
